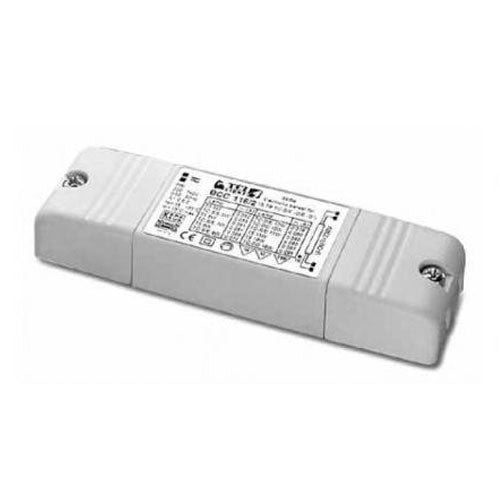

BCC113/2 - 13W T2 FM Electronic Ballast

Small FL ECG for Osram T2 FM lamps

The BCC113/2 is a small and compact electronic ballast for T2 FM lamps, suitable for luminaire installation and independent mounting. The FL ECG is also suitable for connection to emergency equipment according to 60598-2-22. It is equipped with protection class II. The housing is IP20 protected. The maximum power is 13 watts.

The FL ECG has push-wire connections (conductor area 0.5 - 1.5 mm2). The input and output terminal blocks are mounted on opposite sides. In addition, a terminal cover for cables with a diameter of 2.6 - 7.5 mm is included. The electronic ballast can be secured with a slot for screws.

Warm start technology protects the lamp

BCC113/2 performs a start with pre-heating to increase the life of the lamp. It is protected for the case of lamp failure, end of lamp life and disconnection of the lamp (a restart with pre-heating is performed). The EMC compliance at 0 and 60 Hz operation depends on the respective luminaire manufacturer.
